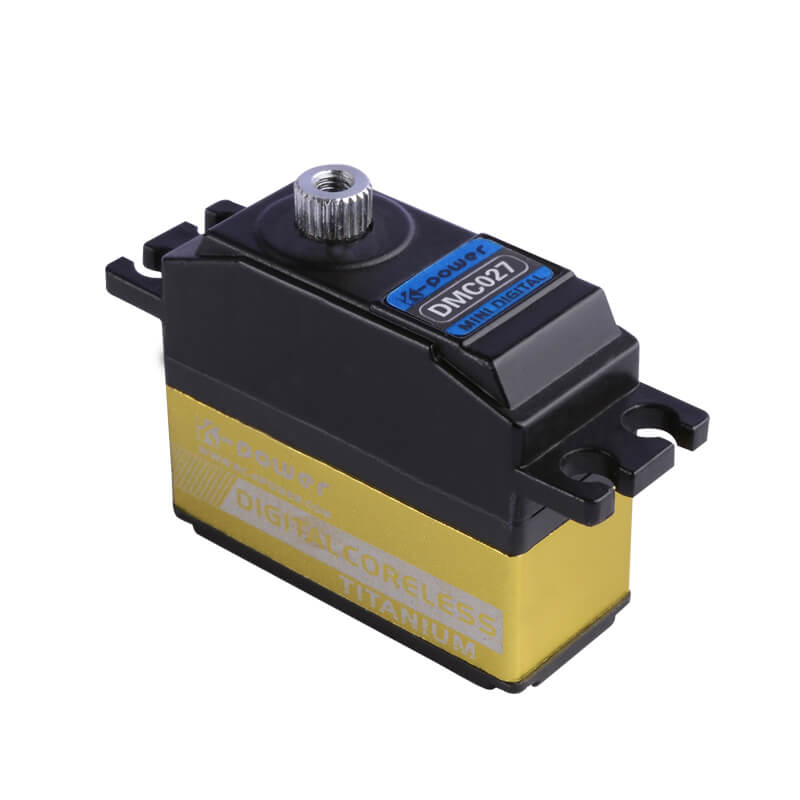

HV Coreless Full Aluminum DMC027

HV metal gear
Features
Get Samples Now

Applications

Specifications

Performance

  • Stall Torque
    7.5kg·cm
  • No-load Speed
    0.08 sec/60°
  • Travel Angle
    120° 支持定制
  • Voltage Range
    6.0V
  • Dimensions
    36*15*29mm³
  • Weight
    28.5g
  • Shell Material
    aluminum case
  • Gear Material
    Metal
  • Spline
    25T
  • Bearing
    Dual BB
  • Motor Type
    Coreless Motor
  • Angle Sensor
  • Signal Type
    PWM | UART-TTL | RS-485
  • Waterproof
    IP42
  • Operating Temperature°C
    -10～50°C
  • Storage Temperature
    -15～80°C

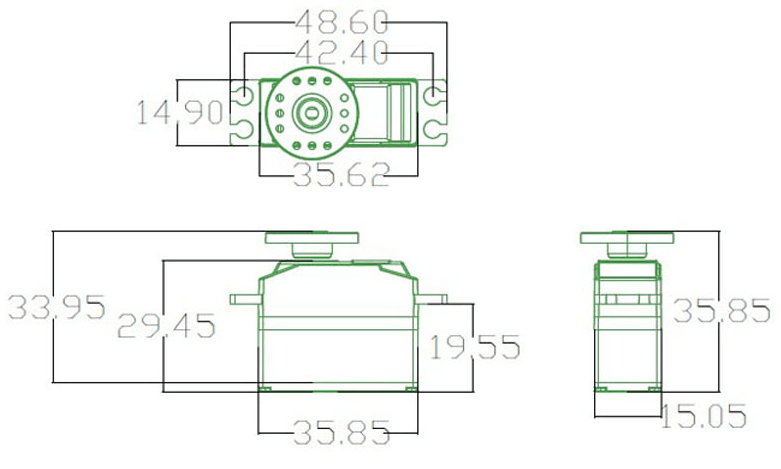

Dimension Drawing

/static/upload/image/20230329/1680073916506530.png dimension drawings

Downloads

Specification
2D Drawings
3D Model
Usage Guidelines

FAQs

Select 2D drawings download format

PDF
DWG

Select 3D drawings download format

STEP
IGES
STL
