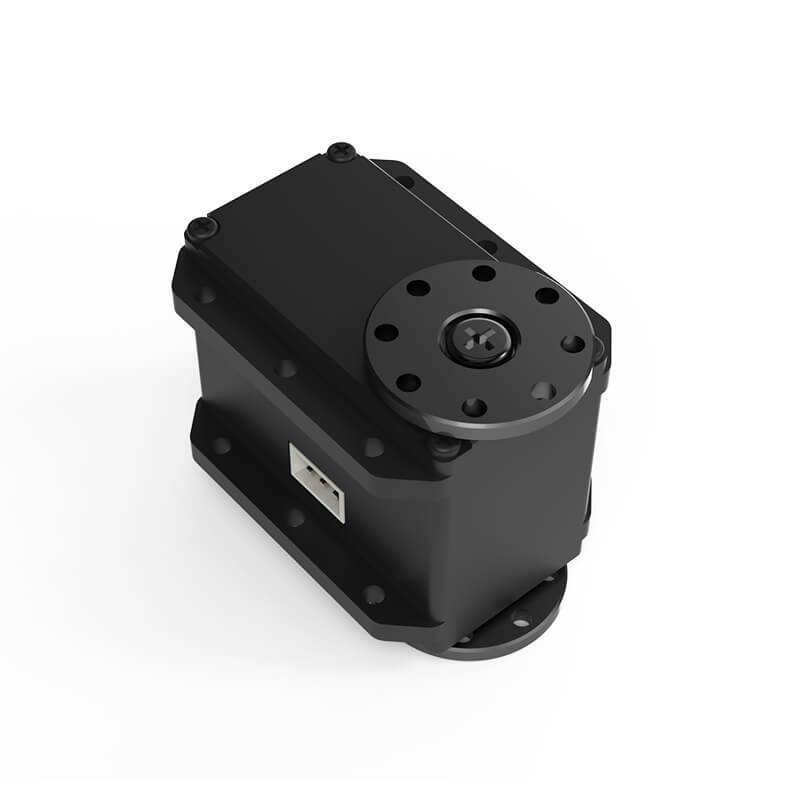

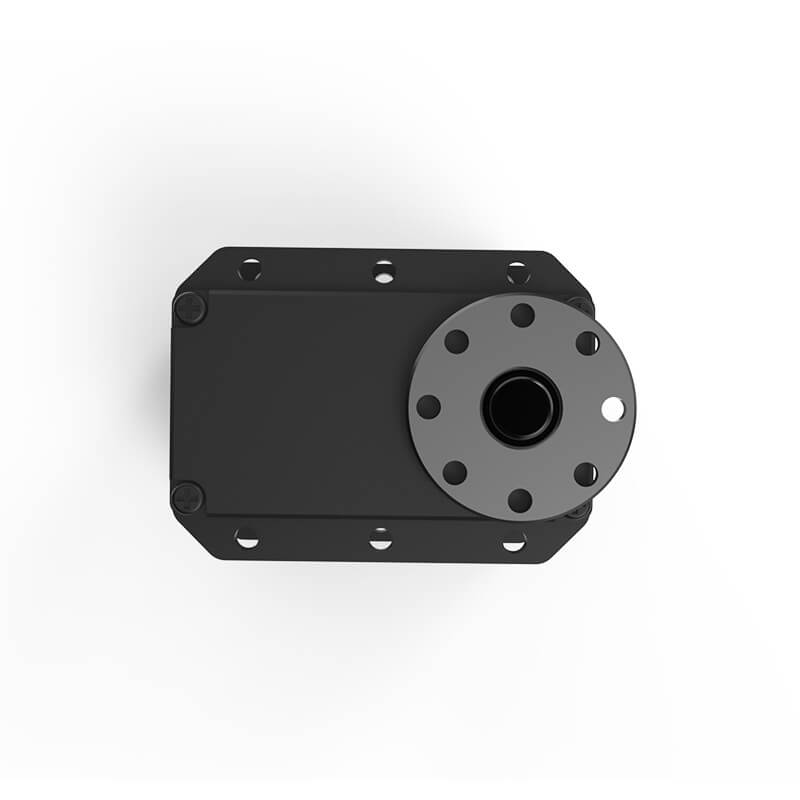

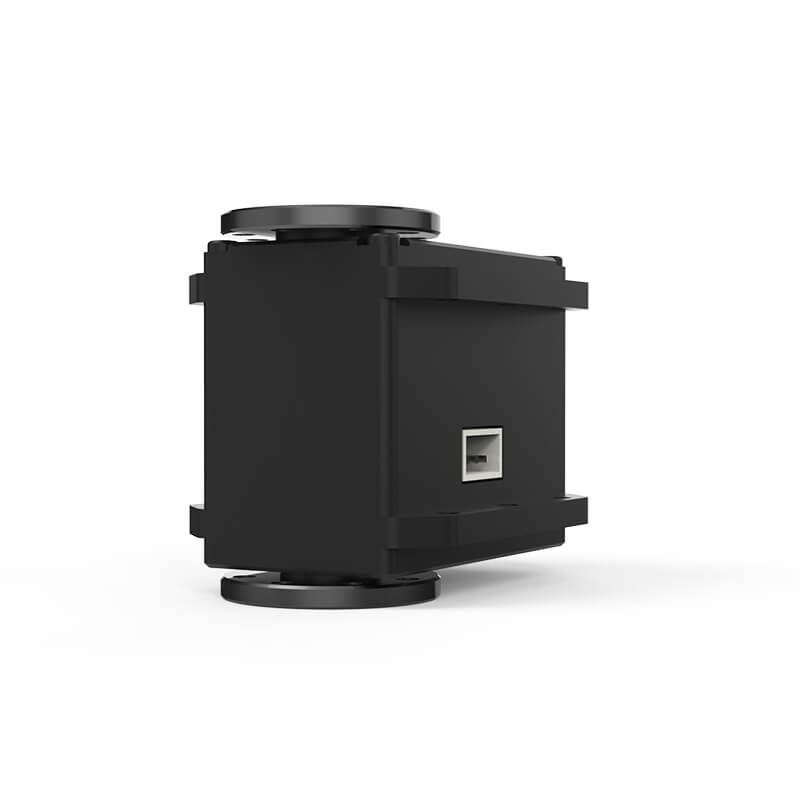

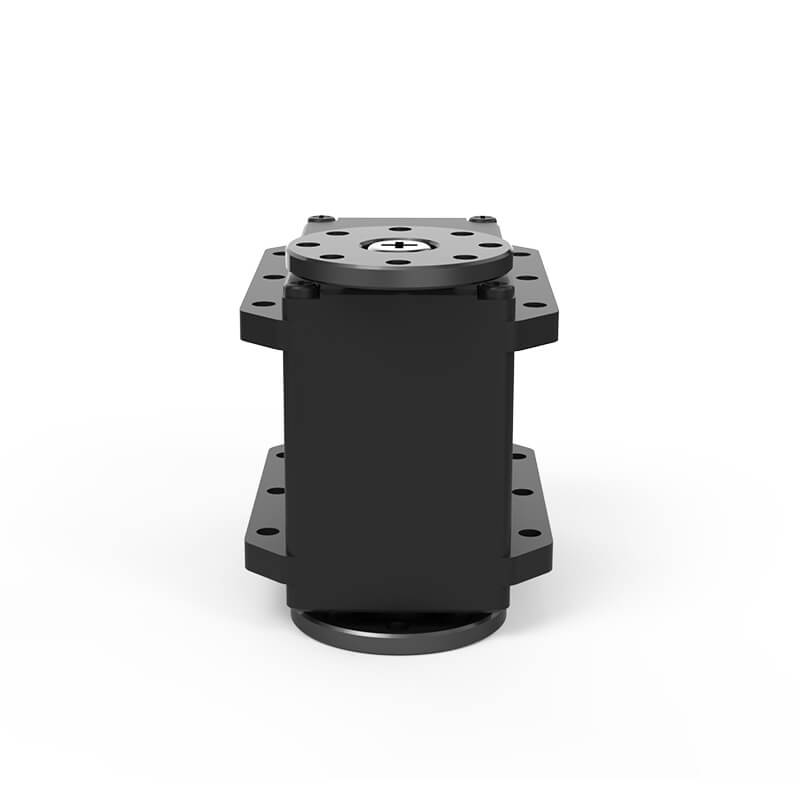

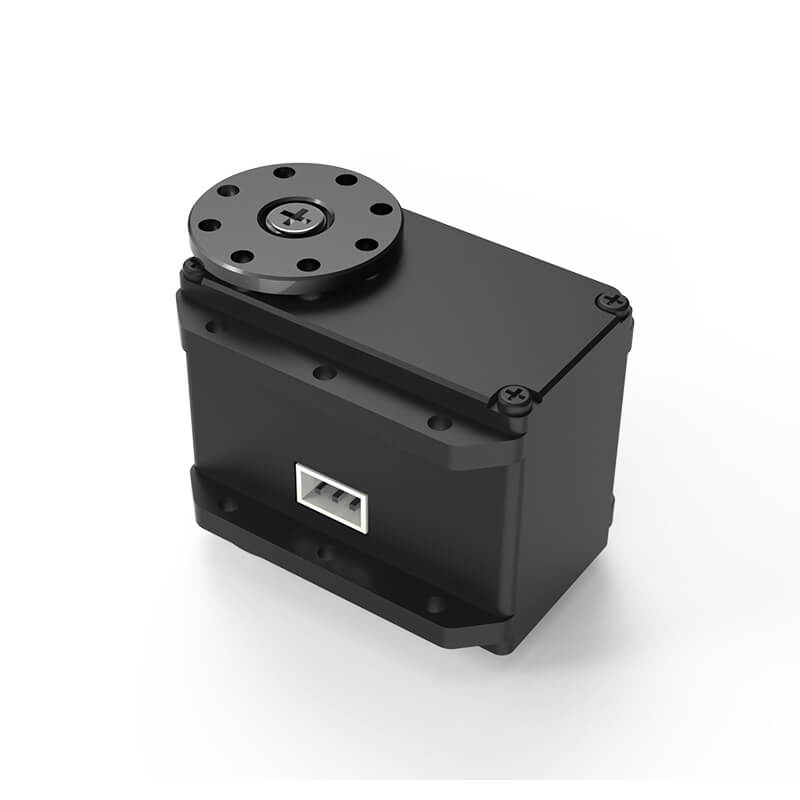

Robotics Servo RC08P

Robotics
Features
Get Samples Now

Applications

Robotics
Specifications

Performance

  • Stall Torque
    4kg·cm
  • No-load Speed
    0.06 sec/60°
  • Travel Angle
    120° 支持定制
  • Voltage Range
    12V
  • Dimensions
    28*21*24mm
  • Weight
    26g
  • Shell Material
    CNC Aluminium Alloy
  • Gear Material
    7075 Aluminium Coated With Titanium
  • Spline
    20T
  • Bearing
    /
  • Motor Type
    Coreless
  • Angle Sensor
  • Signal Type
    PWM | UART-TTL | RS-485
  • Waterproof
    IP42
  • Operating Temperature°C
    -10～50°C
  • Storage Temperature
    -15～80°C

Dimension Drawing

dimension drawings

Downloads

Specification
2D Drawings
3D Model
Usage Guidelines

FAQs

Select 2D drawings download format

PDF
DWG

Select 3D drawings download format

STEP
IGES
STL
