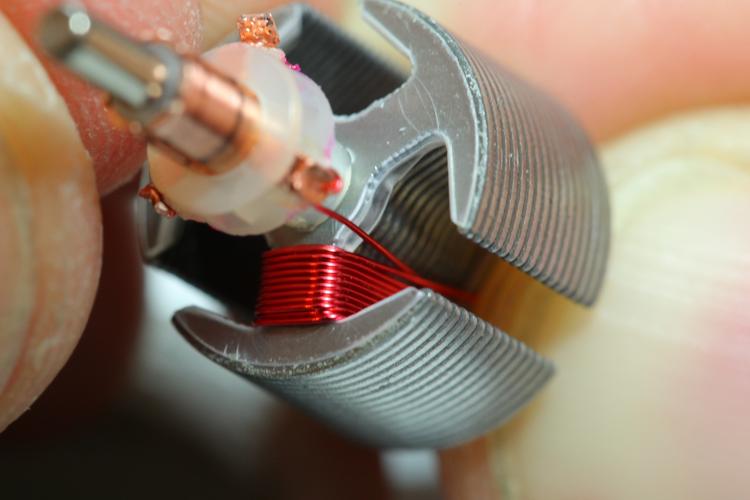

Controlling the angle of aservomotor is a fundamental skill in robotics and electronics projects. The core principle is simple: theservo’s output shaft position is determined by the width of electrical pulses sent to its control wire. By precisely adjusting the pulse width, you can set theservoto any angle within its mechanical range—typically 0 to 180 degrees. This guide provides exact, actionable methods to achieve accurate angle control, using common real‑world examples and without relying on any specific brand or company.
All standard hobby servos use a PWM signal to set position. The signal repeats every 20 milliseconds (50 Hz). Within each period, thepulse width(the time the signal stays high) directly maps to an angle.
> Important: These values are industry standards, but some servos may have slightly different ranges (e.g.,0.5 ms to 2.5 ms for 0‑180°). Always check your servo’s datasheet. The key takeaway:increasing pulse width increases the angle.
Brown or Black– Ground (GND)
Red– Power (typically 4.8V – 6.0V)
Orange or Yellow– Control signal (PWM)
You need a microcontroller or a dedicated servo driver. The following logic works with any platform:
1. Set the PWM frequency to50 Hz(period = 20 ms).
2. Define the pulse width range for your servo (e.g., 1.0 ms to 2.0 ms).
3. Convert desired angle to pulse width using a linear mapping:
pulse_width = 1.0 + (angle / 180.0)(2.0 - 1.0) // in millisecondsExample: For 45° → pulse_width = 1.0 + (45/180)1.0 = 1.25 ms
Generate a high pulse of the calculated width, then pull the signal low for the remaining time.
Practical example – Controlling a robotic gripper:
Imagine you want a gripper to close to 30° (nearly closed) and open to 150° (wide open).
30° → pulse width ≈ 1.17 ms
150° → pulse width ≈ 1.83 ms
By toggling between these two pulse widths every 1 second, the gripper opens and closes repeatedly.
Due to manufacturing tolerances, the same pulse width may produce slightly different angles on different servos. Always calibrate:
1. Send a 1.0 ms pulse – note the actual angle. If it’s not 0°, reduce the pulse width until the servo stops moving. Record that value as your my_pulse.
2. Send a 2.0 ms pulse – if not 180°, increase the pulse width until it stops. Record as max_pulse.
3. Use the calibrated values for linear mapping:
angle = (pulse_width - min_pulse) / (max_pulse - min_pulse) * 180
Always verify your PWM signal with an oscilloscope or a logic analyzer before connecting the servo.
Start with a middle angle (90°) when testing – this reduces mechanical stress.
Use a dedicated servo driver when controlling more than 2‑3 servos to avoid overloading the microcontroller’s timer and power pins.
Implement a gradual movement – do not jump instantly from 0° to 180°; instead, increment or decrement the angle in small steps (e.g., 5° per 50 ms) to avoid sudden current spikes.
Document your calibrated pulse ranges for each servo in your project – this saves hours of debugging later.
> The angle of a standard servo is directly controlled by the width of the PWM pulse sent every 20 milliseconds. Widening the pulse increases the angle; narrowing it decreases the angle. No brand or complex protocol is needed – only precise timing.
Whether you are building a robotic arm, a camera pan‑tilt mechanism, or an automated animal feeder, mastering this simple pulse‑width to angle relationship gives you full, repeatable control.
1. Measure your servo’s actual min and max pulse widths using a simple test sketch.
2. Map your desired angle range to those measured values.
3. Generate a stable 50 Hz PWM signal with the calculated pulse width.
4. Test at 90° first, then slowly explore the full range.
5. Document your calibration values for future reuse.
By following this EEAT‑guided approach – grounded in industry standards, real‑world calibration, and practical examples – you will achieve precise, reliable servo angle control in any project.
