Serial Port Servo
Weichuang Power offers a wide range of actuator and drive system solutions for the intelligent cockpit application of new energy vehicles. We offer a series of drive systems composed of high-torque motors, precision reducers and control circuits. It can meet diverse demands such as high power density and low noise.
Found 12 results
1 2 3
总记录数 30 条,每页 12 条,第 1 / 3 页
Switch views
Product number Stall Torque: No-load Speed: Travel Angel: Voltage Range: Dimensions Signal & Protocol

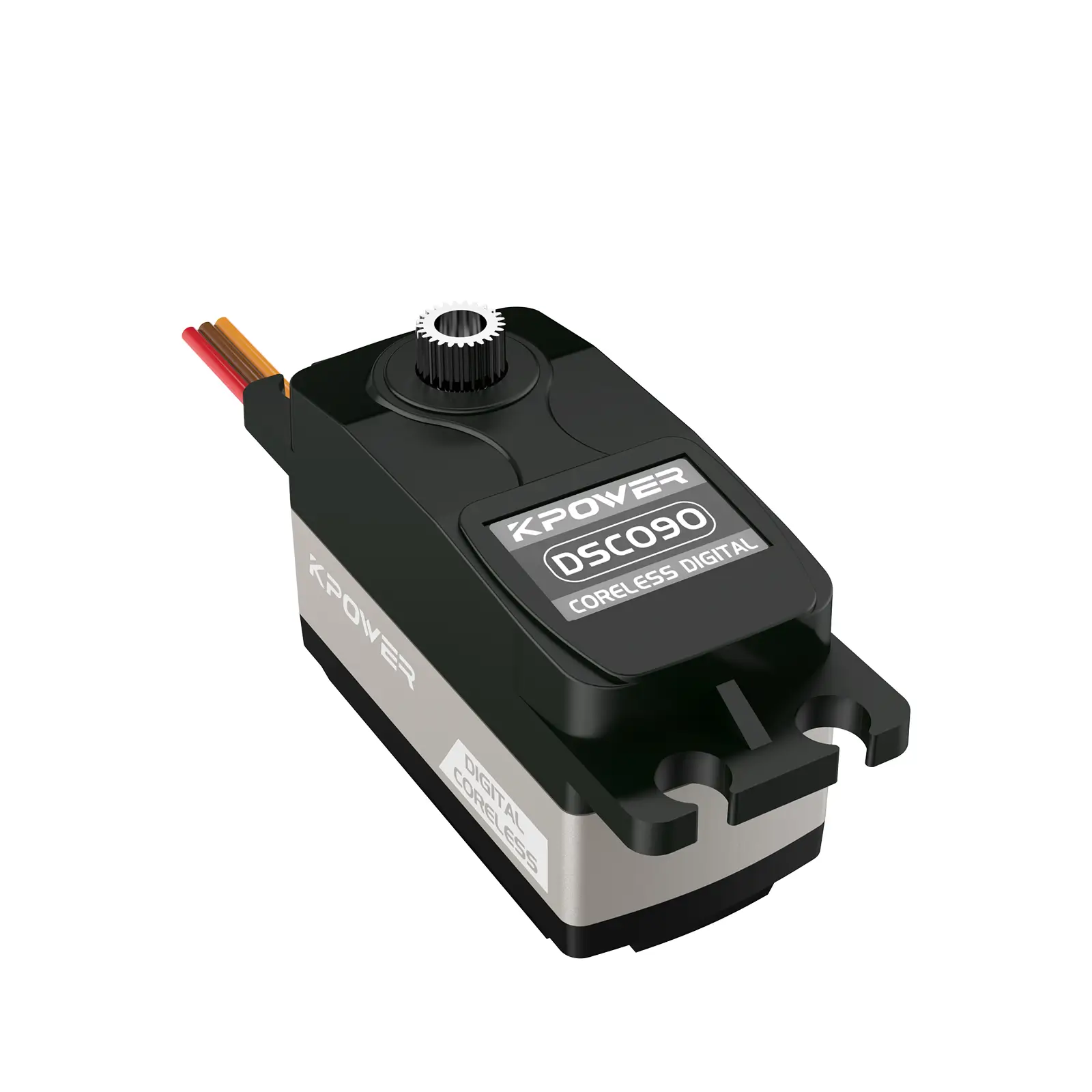

DSC090 9kg low-profile metal gear coreless servo 9kg·cm 0.08sec/60° 120° *custom supported 4.8-8.4V 40.9x20x25.5mm PWM | UART-TTL | RS-485

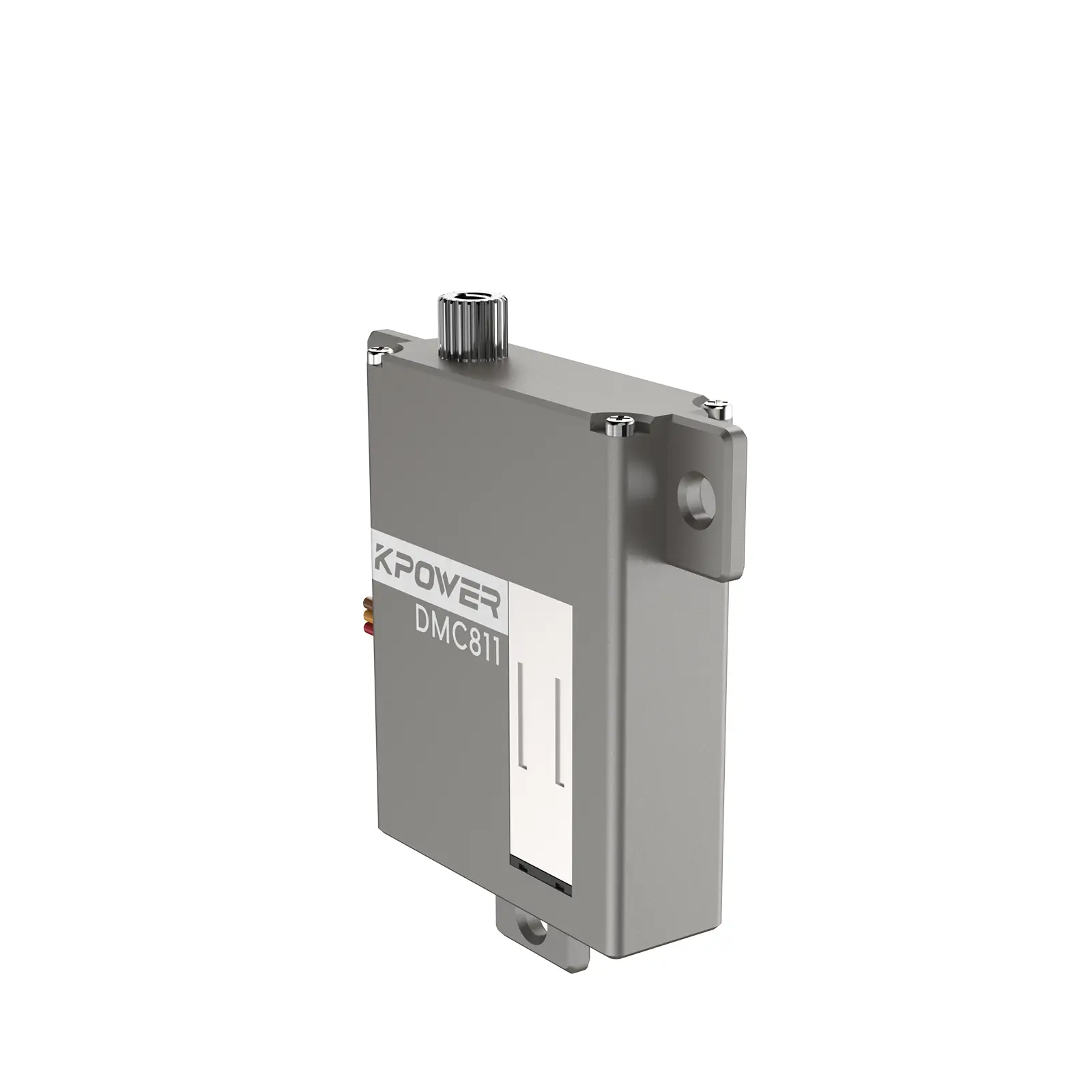

DMC811 8kg metal gear ultra-thin flat servo 8.2kg·cm 0.12sec/60° 120° *custom supported 4.8-8.4V 30x10x35mm PWM | UART-TTL | RS-485

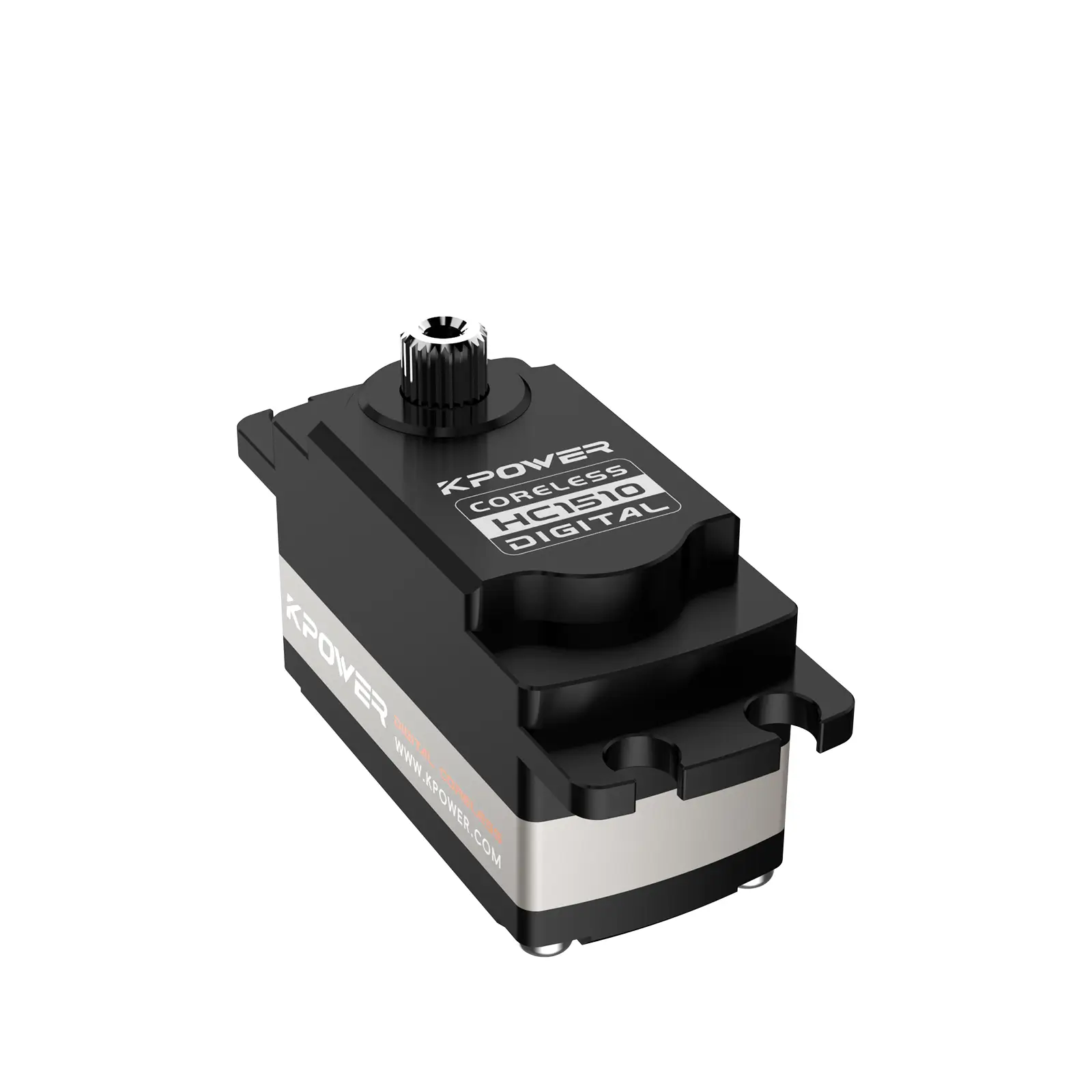

HC1510 15kg low-profile metal gear coreless servo 12kg·cm 0.11sec/60° 120° *custom supported 4.8-8.4V 40.6x20x28.4mm PWM | UART-TTL | RS-485

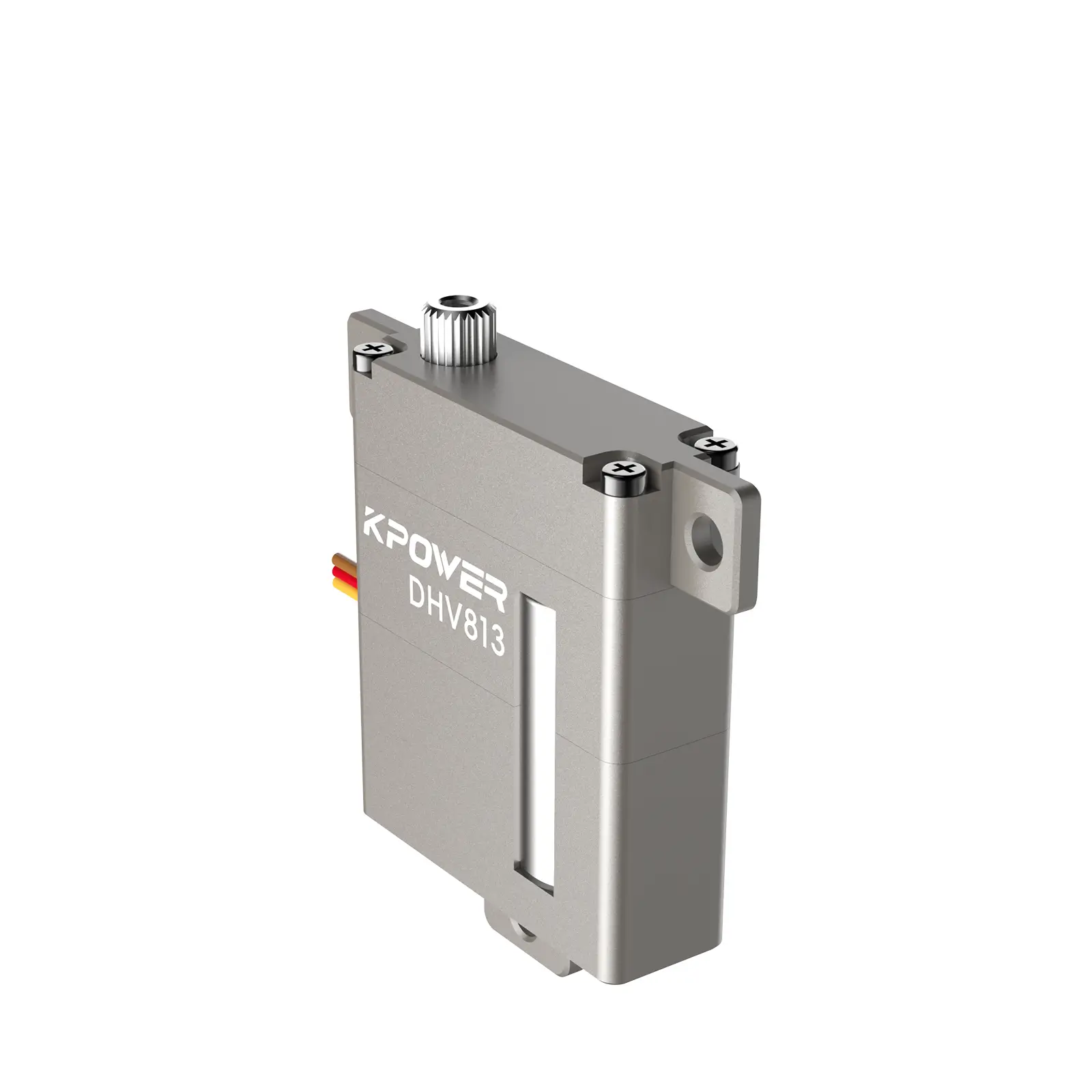

DHV813 9kg metal gear coreless ultra-thin flat servo 9kg·cm 0.09sec/60° 120° *custom supported 4.8-8.4V 30x10x35mm PWM | UART-TTL | RS-485
HB400T 400kg High Torque Brushless Servo 400kg·cm 0.18sec/60° 120° *custom supported 24-32V 100x51x79.8mm PWM | UART-TTL | RS-485
HB150T 150kg High Torque All-Aluminium Brushless Servo 150kg·cm 0.16sec/60° 120° *custom supported 24-32V 64x33x70.1mm PWM | UART-TTL | RS-485
HB200T 200kg High Torque All-Aluminium Brushless Servo 200kg·cm 0.18sec/60° 120° *custom supported 12-24V 64x33x81.1mm PWM | UART-TTL | RS-485

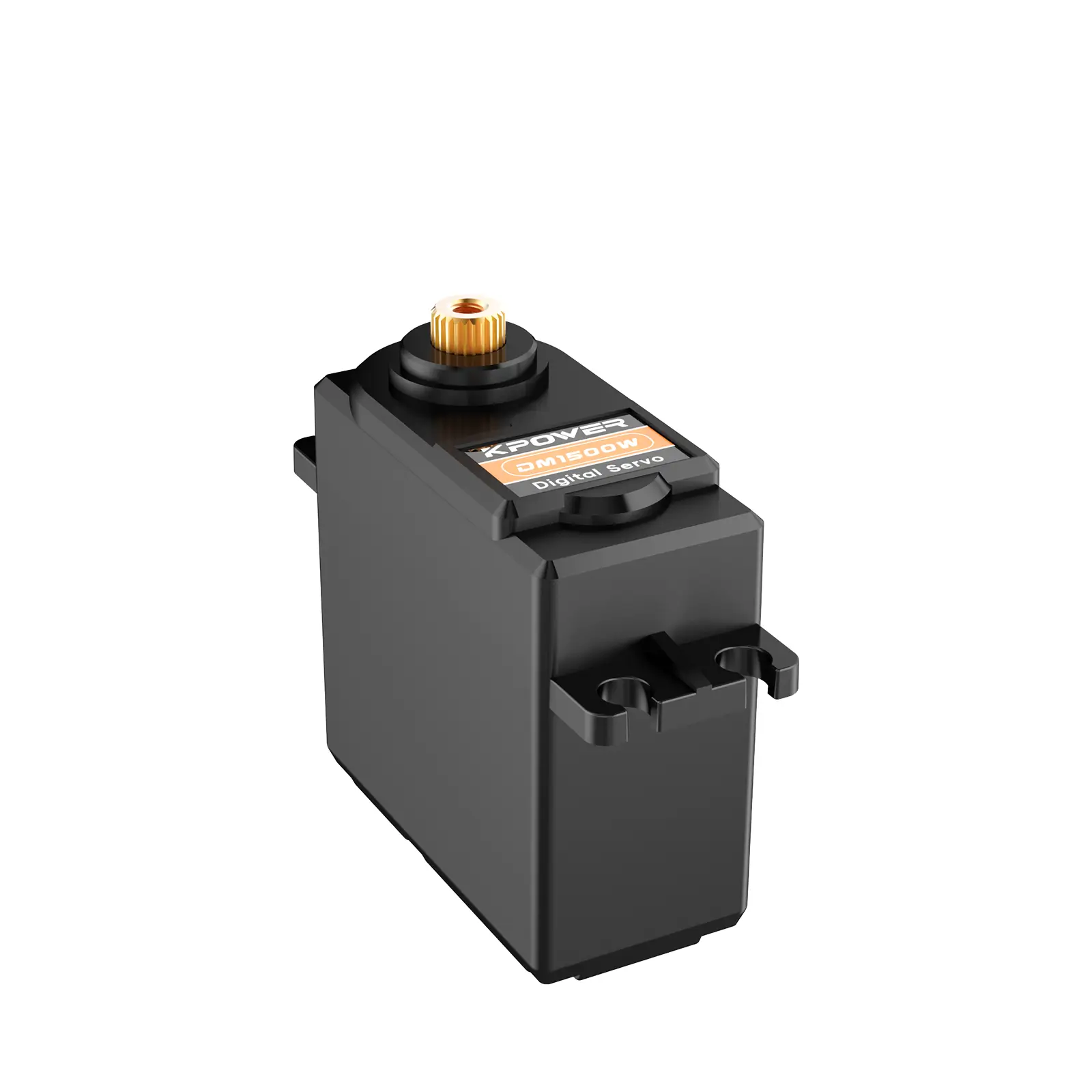

DM1500-W 15kg fully waterproof standard servo 16.3kg·cm 0.13sec/60° 120° *custom supported 4.8-8.4V 40.7x19.8x37.6mm PWM | UART-TTL | RS-485

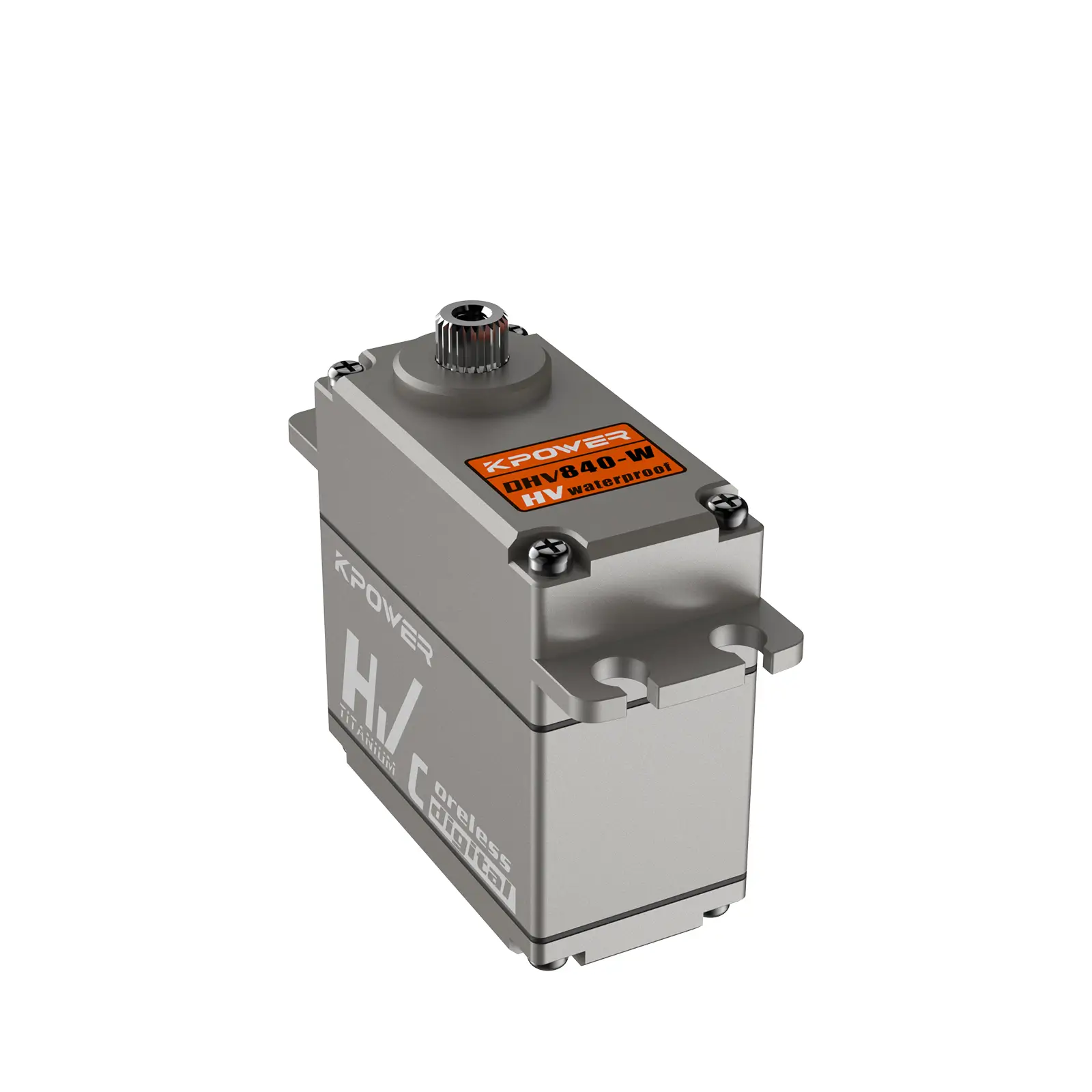

DHV840-W 40kg Fully Waterproof Coreless Servo 38kg·cm 0.08sec/60° 180° *custom supported 4.8-8.4V 40x20x43mm PWM | UART-TTL | RS-485

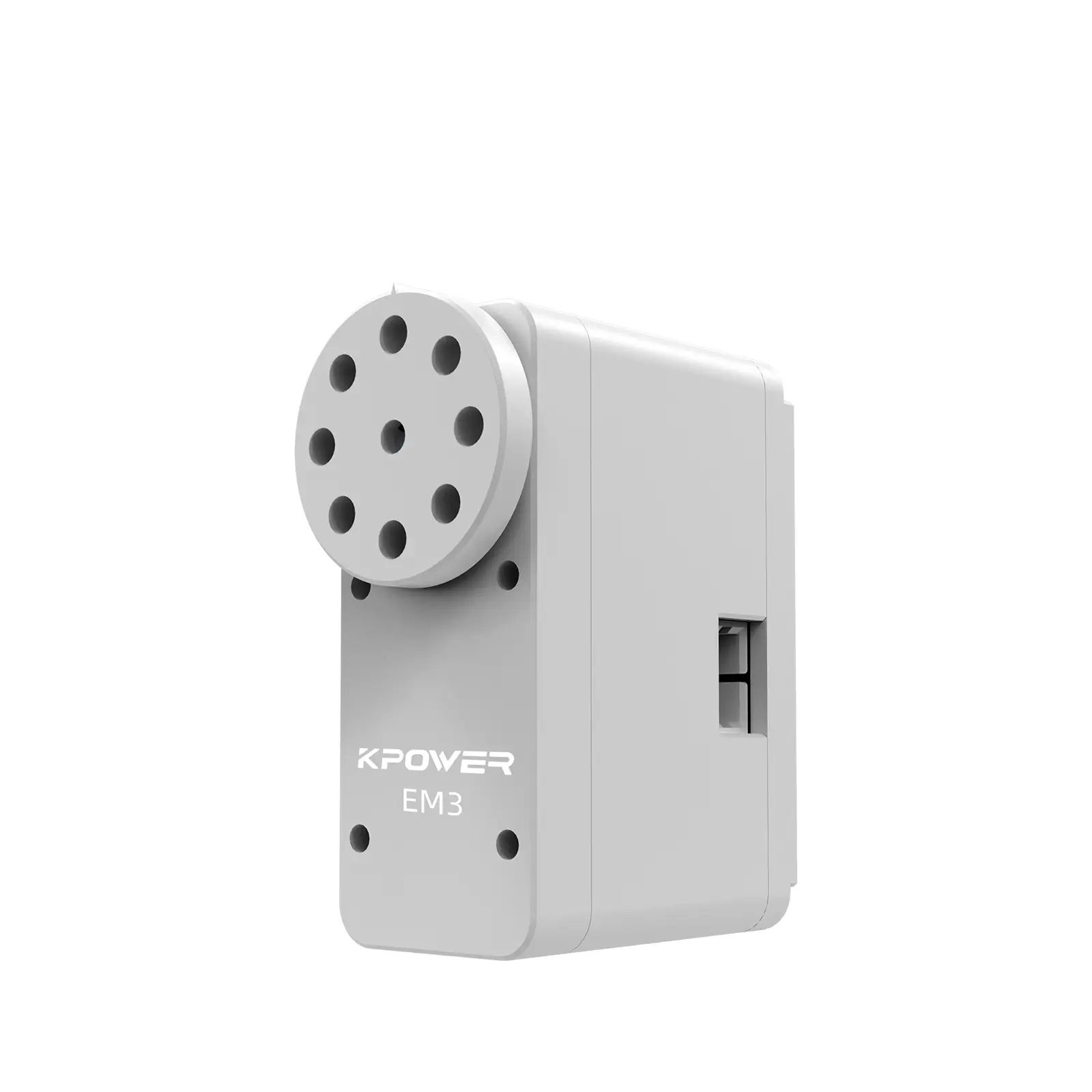

EM3 3kg Micro Robot Force Control Clutch Servo Motor 3kg·cm 0.08sec/60° 300° *custom supported 4.8-8.4V 28.5x12x22.5mm PWM | UART-TTL | RS-485

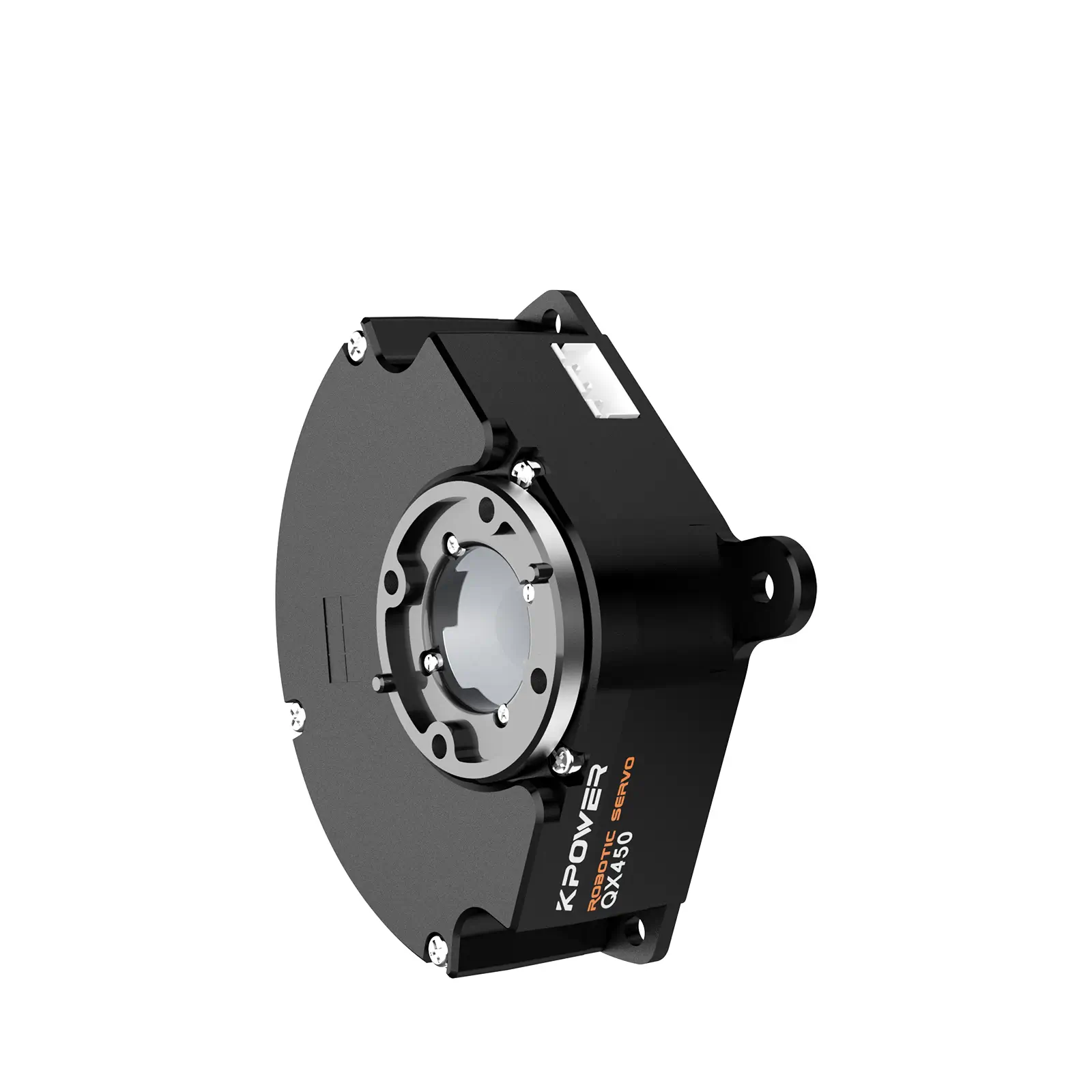

QX450 4kg fan-shaped hollow shaft plastic shell servo 27kg·cm 6.45sec/60° 290±5° *custom supported 4.8-8.4V 63.7x67.6x23mm PWM | UART-TTL | RS-485
RC05P 5kg Dual Output Shaft Robot Servo 5kg·cm 0.08sec/60° 180° *custom supported 4.8-8.4V 23x12x28mm PWM | UART-TTL | RS-485
1 2 3
总记录数 30 条,每页 12 条,第 1 / 3 页
