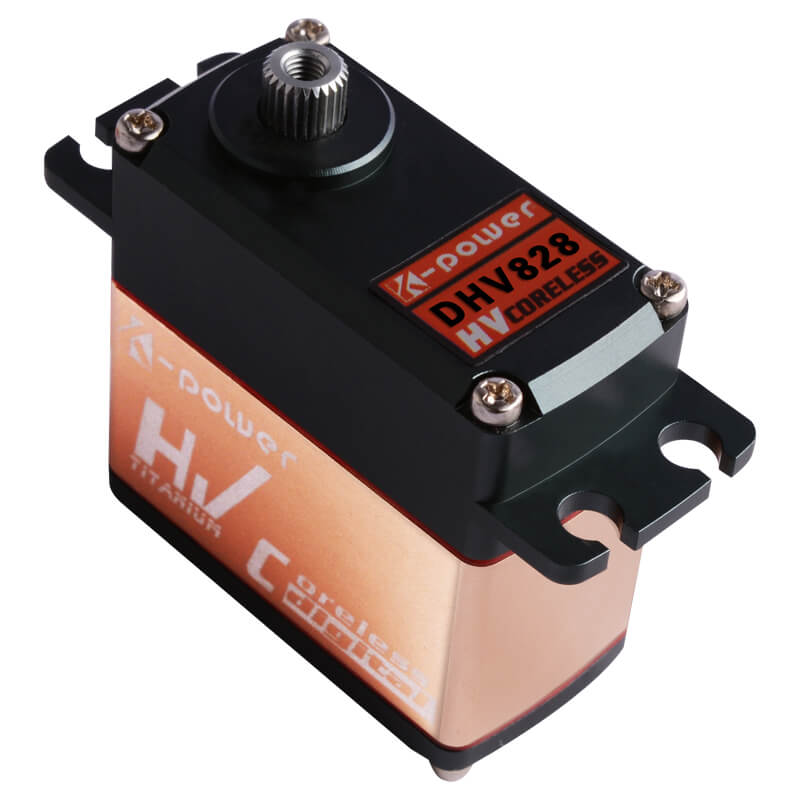

Waterproof Servo Motor DHV828

HV Waterproof
Features
Get Samples Now

Applications

Specifications

Performance

  • Voltage
    6.0V～7.4V
  • Rated torque
  • Rated current
    /
  • Stall torque
    27±0.20kg·cm / 30±0.20kg·cm
  • Stall current
    3200±40mA / 4000±50mA
  • Operating speed
    {content:operating_speed}
  • No load current
    /
  • Idle current
    6±1mA

Mechanical

  • Dimensions
    40*20*39mm³
  • Weight
    65g
  • Limit angle
    210°
  • Excessive play
    ≤0.5°
  • Shell material
    full CNC aluminum case
  • Gear material
    Titanium
  • Spline
    25T
  • Bearing type
    DUAL BB
  • Motor type
    Coreless Motor
  • Angle sensor
  • Storage temperature
    /
  • Operating temperature
    -10℃～50℃

Control & Protection

  • Signal type
    Change pulse width
  • Rotation angle
  • Pulse width range
  • Neutral position
    /
  • Dead band
    /
  • Rotating direction
    Counterclockwise
  • Feedback
    /
  • Protection type
    /

Reliability

  • Load life
    /
  • Noise
    /
  • Waterproof
    /

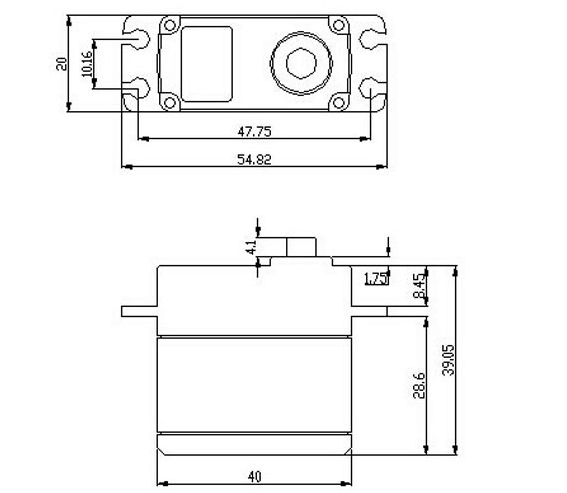

Dimension Drawing

/static/upload/image/20230324/1679647806671636.png dimension drawings

Downloads

Specification
2D Drawings
3D Model
Usage Guidelines

FAQs

Select 2D drawings download format

PDF
DWG

Select 3D drawings download format

STEP
IGES
STL
