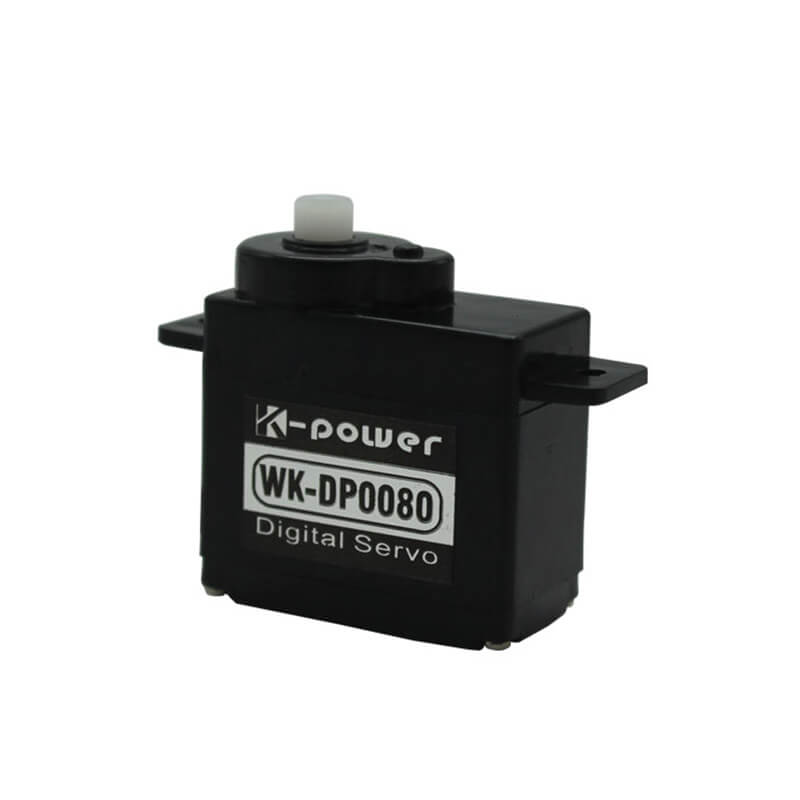

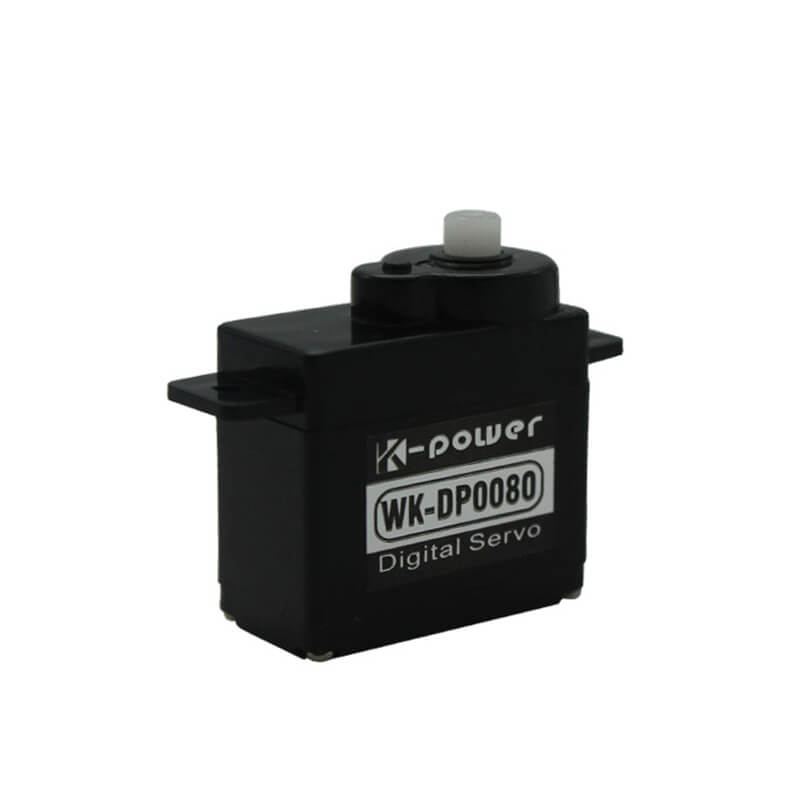

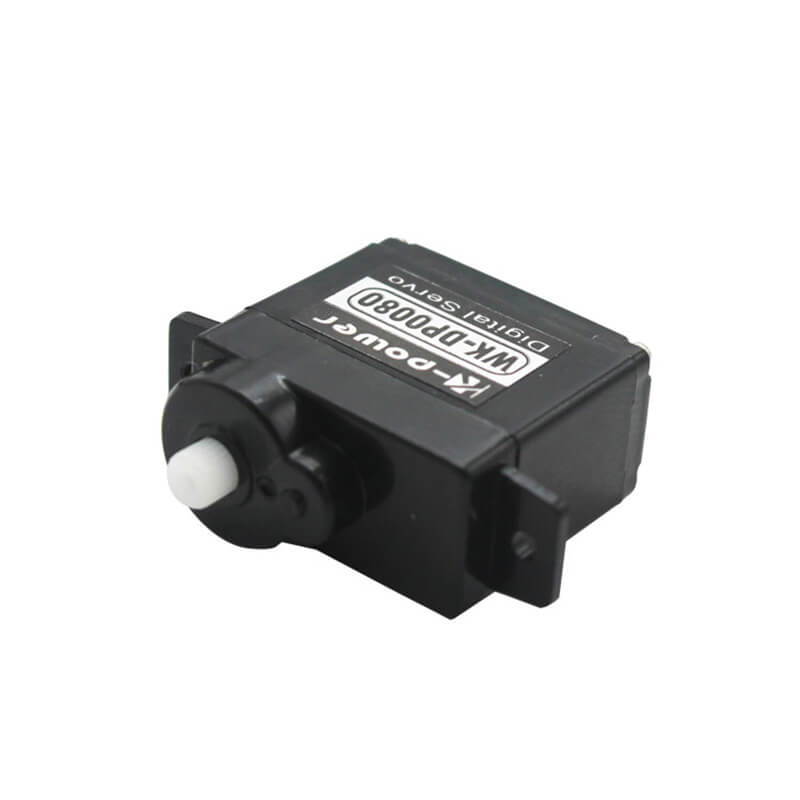

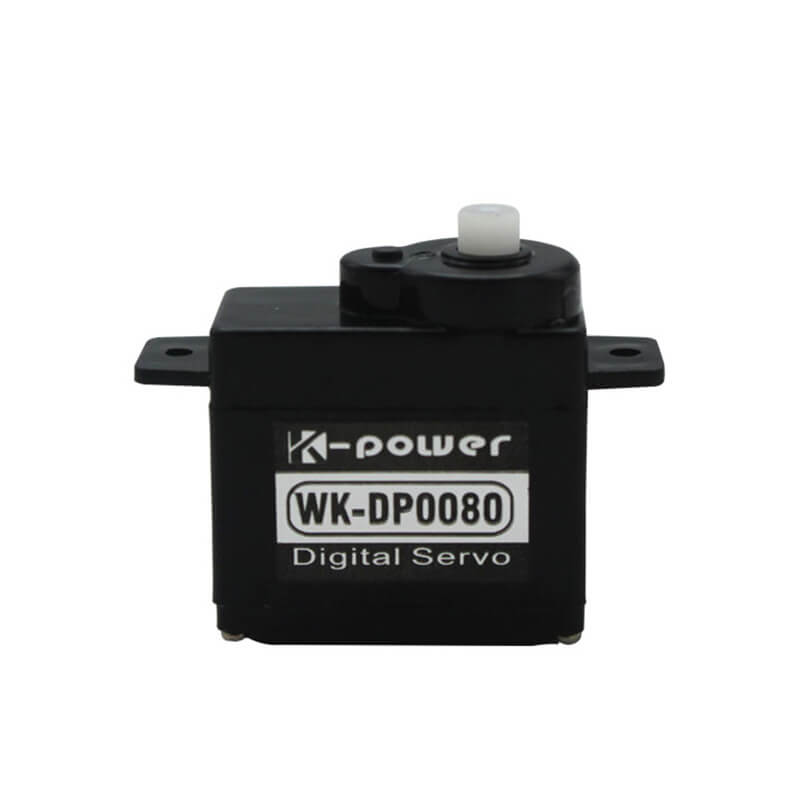

Digital Plastic Gear Servo DP0080

Coreless Motor Plastic Gear
Features
Get Samples Now

Applications

R/C Models
Specifications

Performance

  • Stall Torque
    1.4kg·cm
  • No-load Speed
    0.10 sec/60°
  • Travel Angle
    120° 支持定制
  • Voltage Range
    6.0V
  • Dimensions
    23*12*20.5mm³
  • Weight
    8g
  • Shell Material
    Plastic
  • Gear Material
    Plastic
  • Spline
    21T
  • Bearing
    No
  • Motor Type
    Coreless Motor
  • Angle Sensor
  • Signal Type
    PWM | UART-TTL | RS-485
  • Waterproof
    IP42
  • Operating Temperature°C
    -10～50°C
  • Storage Temperature
    -15～80°C

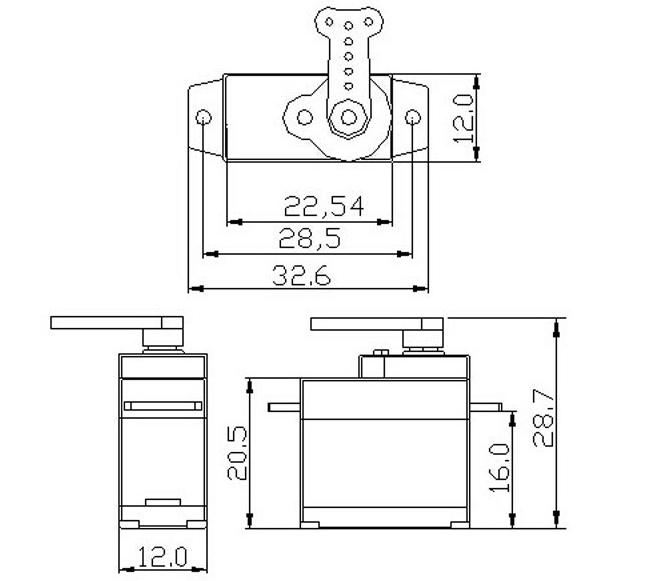

Dimension Drawing

/static/upload/image/20230414/1681463235569577.png dimension drawings

Downloads

Specification
2D Drawings
3D Model
Usage Guidelines

FAQs

Select 2D drawings download format

PDF
DWG

Select 3D drawings download format

STEP
IGES
STL
